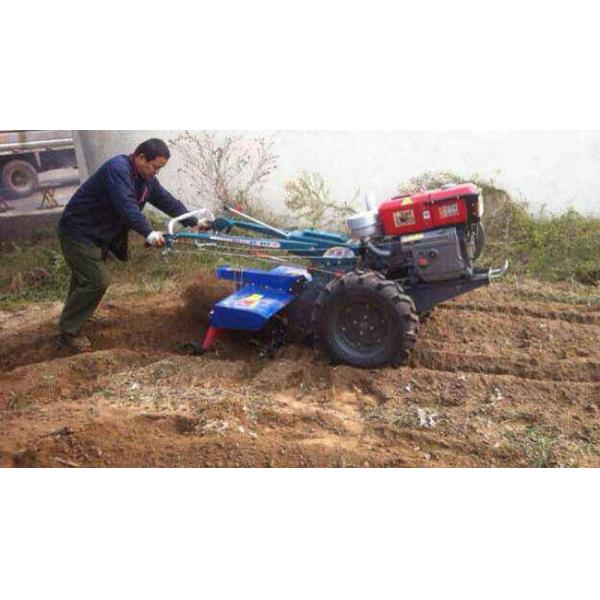

Paddy Field Wheel Walk Behind Tractor Disc Plow Walking Tractor
Product names: Piston, Cylinder liner, Camshaft, Crankshaft,Connecting rod,Cylinder head,
Fuel pump assembly, Fuel injector assembly, Fuel filter assembly, Nozzle, Plunger, Fuel pipe,
High pressure pipe, Oil pipe, Silencer, Intake pipe,Exhaust pipe,Oil pump, Valve kit set,
Fuel tank, Hopper,Oil seal, Water seal ring, Water drain cock,Flywheel, Oil indicator, Governor
fork assembly,Gear set, Balancing shaft,Fan assembly,etc.
| Walking Tractor |
| Model | Unit | YL121 | YL121E | YLWTR151 | YLWTR151E |
| Type | | Single axle,dual-purpose for both traction & drive |
| Overall Dimension | MM | 2680×960×1250 |
| Structural Weight Without Rotavator | Kg | 350 |
| Working Weight With Rotavator | Kg | 485 |
Theoretical Speed
Engine Rotation Speed 2000rpm | Forward | I | Km/h | 1.4 | 1.4 | 1.4 | 1.4 |
| II | Km/h | 2.5 | 2.5 | 2.5 | 2.5 |
| III | Km/h | 4.1 | 4.1 | 4.1 | 4.1 |
| IV | Km/h | 5.3 | 5.3 | 5.3 | 5.3 |
| V | Km/h | 9.4 | 9.4 | 9.4 | 9.4 |
| VI | Km/h | 15.3 | 15.3 | 15.3 | 15.3 |
| Reverse | I | Km/h | 1.1 | 1.1 | 1.1 | 1.1 |
| II | Km/h | 3.8 | 3.8 | 3.8 | 3.8 |
| Turning Speed of Rototilling Shaft | | Single Speed(188/256); Double Speed(188/256/276/375) |
| Rototilling Width | Blades No. 18/20 | MM | 600 |
| Blades No. 24/26 | MM | 900 |
| Tyre | | 6.00-12 |
| Air Pressure | Mpa | 0.2 |
| Wheel Tread | MM | 570~800 |
| Ground Clearance | MM | ≥180 | ≥182 | ≥182 |
| Min. Turning Radius | MM | ≤900 |
| Type of Clutch | | Double Friction Flat of Constant Combination |
| Type of Steering Gear | | Meshing Sleeve |
| Type of Brake | | Cricoid, Inside Expansion |
| Triangle Belt | | B1880 3pcs or 4pcs |
| Capacity of Lubrication Oil | L | ≥6 |
| Engine Model | | CF195N | CF195NM | CF1100N-2 | CF1100NM-2 |
